Stainless Steel IP69K Washdown Motors – BXG Series Hygienic Food Grade Motor

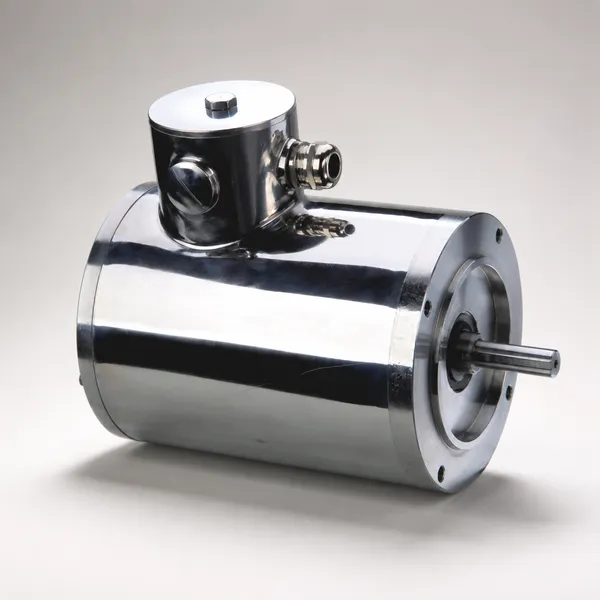

BXG Series Stainless Steel Washdown Motor Overview

The BXG series represents Korea Ever-Power motor line specifically engineered for hygienic processing environments where aggressive daily cleaning with high-pressure hot water, steam, caustic solutions, or acid-based sanitizers is part of standard operating procedure. Unlike conventional three-phase motors with painted cast iron or aluminum housings, the BXG motor uses a seamless stainless steel enclosure that resists corrosion from chlorinated cleaners, peracetic acid, sodium hydroxide, and other chemicals commonly used in food plant sanitation.

The IP69K protection rating is the highest ingress protection level defined by DIN 40050 Part 9. It certifies the motor enclosure against high-pressure water jets at 80°C, delivered at 80–100 bar from a distance of 100–150 mm, through a spray nozzle with a flow rate of 14–16 liters per minute. This test condition simulates the most demanding CIP (clean-in-place) and COP (clean-out-of-place) procedures found in dairy, meat, and beverage processing facilities.

The motor housing is manufactured using precision robotic TIG welding inside the frame, resulting in a completely smooth exterior with no visible weld seams, no exposed fastener heads, and no crevices where bacteria or food residue could accumulate. The terminal box is epoxy-encapsulated within the motor frame and sealed with submersible-grade O-rings, eliminating a common failure point for water ingress in conventional washdown motors.

Painted Motors Fail in Washdown Environments

Standard painted aluminum or cast iron motors rated IP55 are not designed for direct exposure to high-pressure hot water jets, caustic cleaning solutions, or steam. The paint coating cracks and peels after repeated thermal cycling from washdown temperatures (80°C water followed by ambient cooling). Once the base metal is exposed, corrosion begins rapidly. Aluminum housings are particularly vulnerable to attack by alkaline (NaOH) and acidic (HNO3) cleaners used in dairy and beverage sanitation. Motor failures caused by water ingress through degraded paint and corroded seals are one of the most common maintenance problems in food processing plants.

Hygienic Design Prevents Bacterial Harborage

Food safety regulations (including FSMA in the United States, EC 852/2004 in Europe, and HACCP principles globally) require that equipment surfaces in food contact and food splash zones be smooth, cleanable, and free of crevices where bacteria can hide and multiply. Standard motors with external fans, cooling fin gaps, nameplate edges, and recessed bolt heads create dozens of potential bacterial harborage points. The BXG stainless steel motor eliminates these risks with its smooth, fan-less, crevice-free enclosure that can be fully sanitized by high-pressure spray without disassembly.

TENV Cooling — No External Fan

The totally enclosed non-ventilated design dissipates heat through the stainless steel housing surface by natural convection and radiation. Without an external fan, there is no air movement that could transfer airborne contaminants between processing zones — a critical requirement in cleanroom pharmaceutical facilities and allergen-controlled food production areas. The absence of a fan also eliminates the fan cover cavity, a known harborage point for bacteria and debris on conventional motors. TENV cooling is inherently speed-independent, making these motors particularly well-suited for VFD-driven variable speed applications.

Robotic TIG Welded Construction

The motor frame is precision TIG-welded by robotic welding systems inside the housing structure. External surfaces are completely smooth with no visible weld beads, no grinding marks, and no surface porosity. This construction method eliminates the crevices found at traditional bolted or cast joints where bacteria, cleaning chemicals, and moisture can accumulate. The result is a motor surface with a roughness of Ra ≤ 0.8 µm — smoother than typical food-grade stainless steel pipe fittings.

Sealed Epoxy-Encapsulated Terminal Box

The electrical connection chamber is sealed within the motor frame and filled with thermally conductive epoxy resin. This eliminates the traditional removable terminal box cover — a frequent entry point for water during washdown operations. Cable entry uses IP69K rated stainless steel conduit fittings with dual O-ring seals. The electrical connections are permanently protected from water, steam, and chemical exposure, dramatically reducing the risk of insulation failure caused by moisture ingress.

NSF H1 Food-Grade Lubrication

All bearings are lubricated with NSF International H1 registered grease approved for incidental food contact per 21 CFR 178.3570. In the unlikely event that a trace amount of lubricant migrates past the shaft seal and contacts food product, it will not create a food safety hazard. The grease is also formulated for long service life in wet environments, maintaining lubrication performance even after repeated exposure to washdown water spray.

Dairy Processing

Pasteurizers, homogenizers, separator drives, CIP pump motors, and cheese processing equipment. Dairy environments combine high humidity, frequent hot water washdowns, and exposure to lactic acid and caustic soda — conditions that rapidly destroy conventional painted motors.

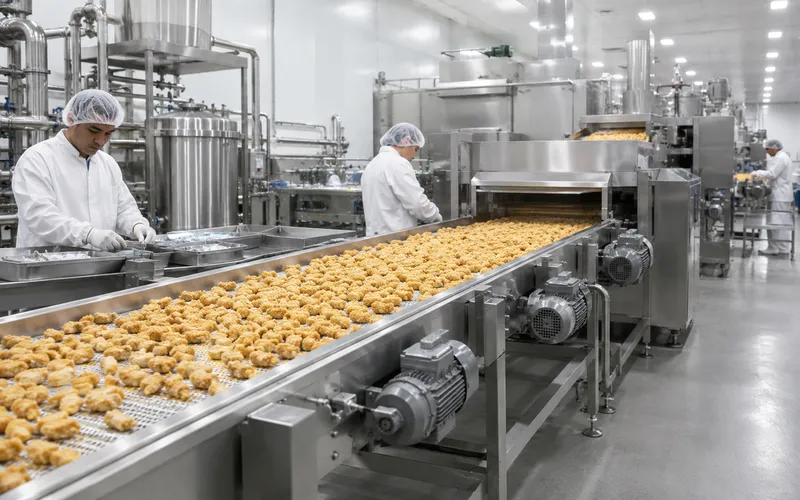

Meat and Poultry Processing

Band saws, grinders, sausage fillers, smokehouses, and chilling tunnel conveyors. Meat processing requires the most aggressive sanitation protocols in the food industry, with multiple daily washdowns using chlorinated alkaline detergents at temperatures up to 80°C.

Outdoor and Marine Environments

Deck equipment on fishing vessels, aquaculture feed systems, outdoor car wash machinery, and coastal industrial installations. The combination of IP69K sealing and SS316L corrosion resistance provides long service life in salt spray and high-humidity environments where standard motors fail within months.

We replaced 22 painted IP55 motors on our poultry processing line with BXG SS304 IP69K units. Before the switch, we were losing an average of 3 motors per quarter to water ingress failures, costing us roughly $4,200 per incident including replacement motor, electrician labor, and lost production. After 14 months with the stainless steel motors, we have had zero failures and zero unplanned downtime related to motor issues. The investment paid for itself within 10 months.

Robert J., Maintenance Manager

Poultry Processing Plant, Springdale, Arkansas, USA

Our dairy requires SS316L grade on all equipment in the raw milk receiving and pasteurization areas due to the combination of lactic acid exposure and chlorinated CIP chemicals. The Ever-Power BXG motors in 316L have been operating for 20 months with no signs of pitting or surface discoloration. The smooth housing makes sanitation verification during our BRC audit much simpler — the auditor specifically commented on the absence of bacterial harborage points on the motor surfaces.

Elena V., Quality Assurance Manager

Dairy Processing Cooperative, Christchurch, New Zealand

We operate 8 BXG motors on VFDs driving conveyor speed zones in our ready-meal production line. The TENV design means we do not need to derate the motors at low conveyor speeds during product accumulation phases. At 10 Hz, the motors run cool and smooth without the overheating problems we experienced with our previous TEFC washdown motors. The speed stability under varying product load has also improved product spacing consistency on the line.

Jean-Pierre D., Automation Engineer

Prepared Foods Manufacturer, Lyon, France
